Horizintal Cooler
Horizintal Cooler
Dry Cooling Unit with Hydraulic Pumping Station
Dry Cooling Unit with Hydraulic Pumping Station
Dry Cooling Unit with Hydraulic Pumping Station
Dry Cooling Unit with Hydraulic Pumping Station
Dry Cooling Unit with Hydraulic Pumping Station

Dry Cooling Unit with Hydraulic Pumping Station



Units with horizontal airflow of economical application for commercial and industrial use.





Features：



1.Piping in copper or stainless steel AISI 304 OrAISI 316LFinned pack available in a wide range of materials.

2. Fans: AC and EC

3. Complete range of accessories.

4. Casing in galvanized steel, powder painted.







Units with vertic al airflow dry coolers with Evaporative pre-cooling and Water -and energysaving solution.





Features：



1.Piping in copper or stainless steel AISI 304 OrAISI 316LFinned pack available in a wide range of materials.

2. Fans: AC and EC

3. Complete range of accessories.

4. Casing in galvanized steel, powder painted.





V-Shaped designs, featuring incre ase the areaof the intake. evaporative pre-coolin goption for instant energy savings.





Features：



1.Piping in copper or stainless steel AISI 304 OrAISI 316LFinned pack available in a wide range of materials.

2. Fans: AC and EC

3. Complete range of accessories.

4. Casing in galvanized steel, powder painted.

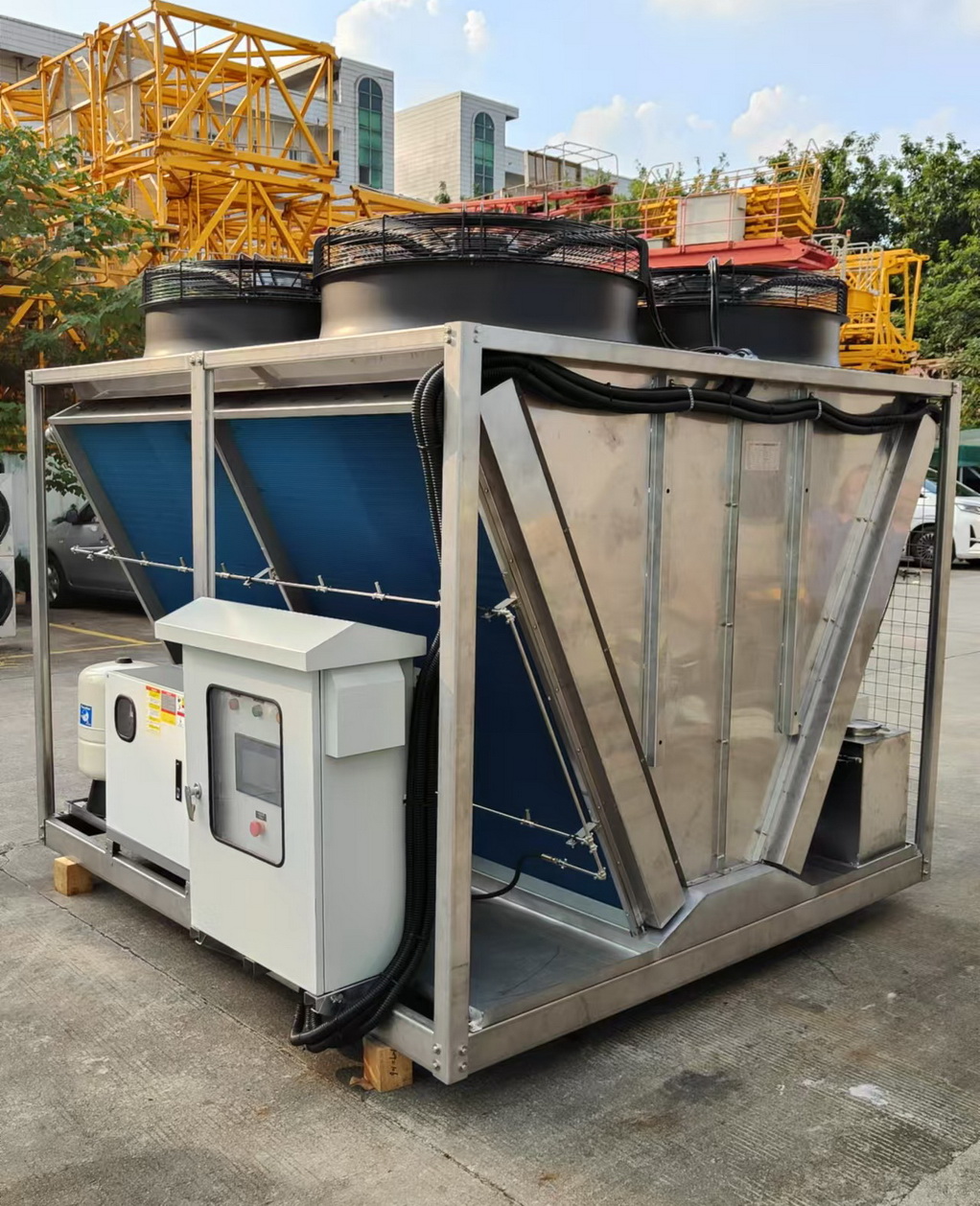

High-performance V-shaped dry coolers with Evaporative pre-cooling , spray system and dust  filter.





Features：



1.Piping in copper or stainless steel AISI 304 OrAISI 316LFinned pack available in a wide range of materials.

2. Fans: AC and EC

3. Complete range of accessories.

4. Casing in galvanized steel, powder painted.







Dry Coolers for refrigeration, air conditioning and process applications in V-shaped designs Suitable for water glycools and special fluids.





Features：



1.Piping in copper or stainless steel AISI 304 OrAISI 316LFinned pack available in a wide range of materials.

2. Fans: AC and EC

3. Complete range of accessories.

4. Casing in galvanized steel, powder painted.





Hot process fluid enters the inlet header connection, shown in red. Heat from the fluid dissipates through the coil tubes surface to the fins. Ambient air is drawn in over the coil surface by the fan transfer to the air and discharge to the atmosphere. Cool process fluid exists.


 EC motors are the latest development in energy saving and speed control. The high efficiency wing tip fans operate up to 3db less than conventional blade fans with improved part speed energy con sumpt. the units through the connections shown in blue.


          Technical Data Of Dry Cooler-P Type

Model

Air Flow

(m³/h)

Heat

Capacity

(kW)

Water Flow (I/s)

Fan Size

(mm)

Fan Unit

(pcs)

Motor Power

(kW)

Unit dimensions

(mm)

L

W

H

AC Fan

EVER-0101P-3R-AC630

8300

24.87

1.21

630

1

0.74

1000

980

880

EVER-0101P-4R-AC630

8800

29.26

1.44

630

1

0.74

1000

980

900

EVER-0101P-3R-AC710

11000

32.47

1.57

710

1

1.23

1150

1100

880

EVER-0101P-4R-AC710

11500

38.02

1.86

710

1

1.23

1150

1100

900

EVER-0102P-3R-AC630

16600

50.36

2.43

630

2

1.48

1950

980

880

EVER-0102P-4R-AC630

17600

58.53

2.86

630

2

1.48

1950

980

900

EVER-0102P-3R-AC710

22000

66.94

3.23

710

2

2.46

2250

1100

880

EVER-0102P-4R-AC710

23000

76.24

3.71

710

2

2.46

2250

1100

900

EVER-0103P-3R-AC630

24900

75.65

3.66

630

3

2.22

2900

980

880

EVER-0103P-4R-AC630

26400

86.33

4.2

630

3

2.22

2900

980

900

EVER-0103P-3R-AC710

33000

99.86

4.82

710

3

3.69

3350

1100

880

EVER-0103P-4R-AC710

34500

114.11

5.54

710

3

3.69

3350

1100

900

EVER-0104P-3R-AC630

33200

102.35

4.95

630

4

2.96

3850

980

880

EVER-0104P-4R-AC630

35200

116.53

5.68

630

4

2.96

3850

980

900

EVER-0104P-3R-AC710

44000

134.91

6.52

710

4

4.92

4450

1100

880
EVER-0104P-4R-AC710 46000 153.86 7.48 710 4 4.92 4450 1100

900



Note: The above working conditions are based on 42℃/47℃ inlet/outlet temperature,the medium is pure water, ainlet air temperature is 30℃.

If the actual working conditions are different from the reference working conditions, please contact the relevant EVER engineers for selection.



      Technical Data Of Dry Cooler-V type

Model

Air Flow

(m³/h)

Heat

Capacity

(kW)

Water Flow (I/s)

Fan Size

(mm)

Fan Unit

(pcs)

Motor Power

(kW)

Unit dimensions

(mm)

L

W

H

AC Fan

EVER-0102V-3R-AC710

16600

72.42

3.50

710

2

1.48

1850

1100

1060

EVER-0102V-4R-AC800

17600

132.96

6.42

800

2

1.48

2050

1100

1350

EVER-0102V-4R-AC910

22000

165.27

7.98

910

2

2.46

2250

1100

1450

EVER-0202V-3R-AC710

46000

145.05

7.01

710

4

4.92

1850

2200

1060

EVER-0202V-4R-AC800

33200

266.42

12.86

800

4

2.96

2050

2200

1350

EVER-0202V-4R-AC910

35200

330.84

15.97

910

4

2.96

2250

2200

1450

EVER-0203V-3R-AC710

66000

217.68

10.70

710

6

7.38

2750

2200

1060

EVER-0203V-4R-AC800

69000

398.92

19.32

800

6

7.38

3050

2200

1350

EVER-0203V-4R-AC910

49800

495.56

23.89

910

6

4.44

3350

2200

1450

EVER-0204V-3R-AC710

70400

289.89

14.12

710

8

5.92

3650

2200

1060

EVER-0204V-4R-AC800

88000

531.97

25.84

800

8

9.84

4050

2200

1350

EVER-0204V-4R-AC910

92000

662.20

32.08

910

8

9.84

4450

2200

1450

EVER-0205V-3R-AC710

83000

362.15

17.36

710

10

7.40

4550

2200

1060

EVER-0205V-4R-AC800

88000

664.36

32.84

800

10

7.40

5050

2200

1350

EVER-0205V-4R-AC910

110000

826.59

40.12

910

10

12.30

5550

2200

1450

Note: The above working conditions are based on 42℃/47℃ inlet/outlet temperature,the medium is pure water, ainlet air temperature is 30℃.

If the actual working conditions are different from the reference working conditions, please contact the relevant EVER engineers for selection.
